加长重型撇渣器 (EM0050)

  • 产品单张
  • 产品型号
搜索:

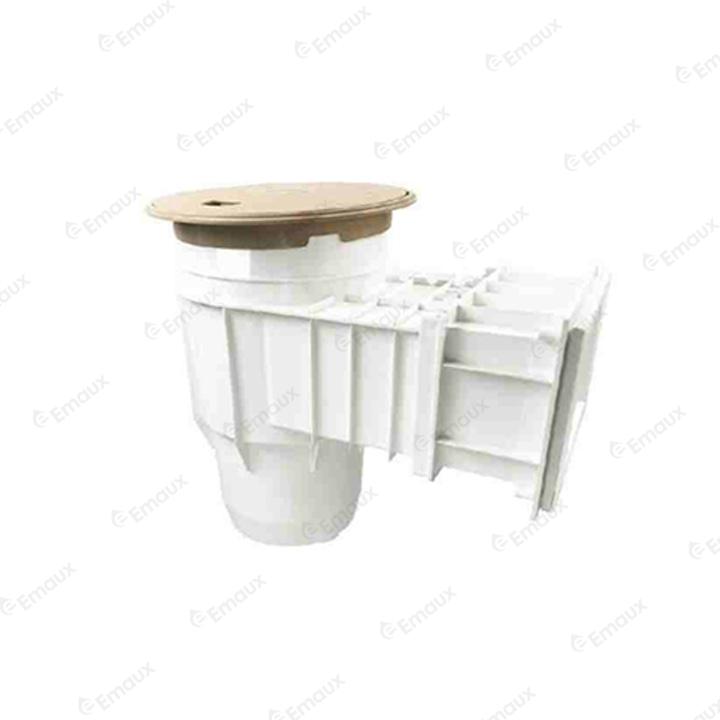

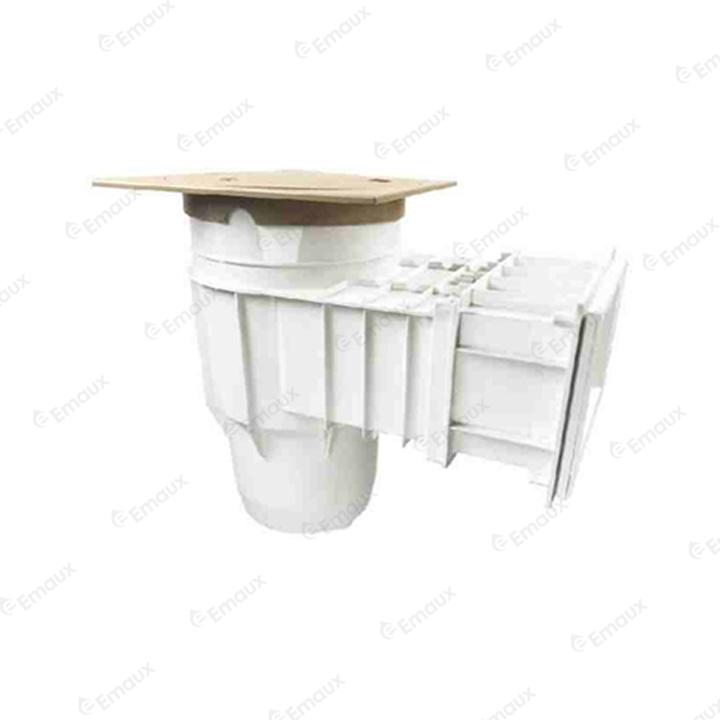

EMAUX - Wide Mouth Wall Skimmer EM0050
产品名称
Product   Name: EM0050 Wide Mouth Wall Skimmer (Concrete Pool & Vinyl Pool)
产品编号

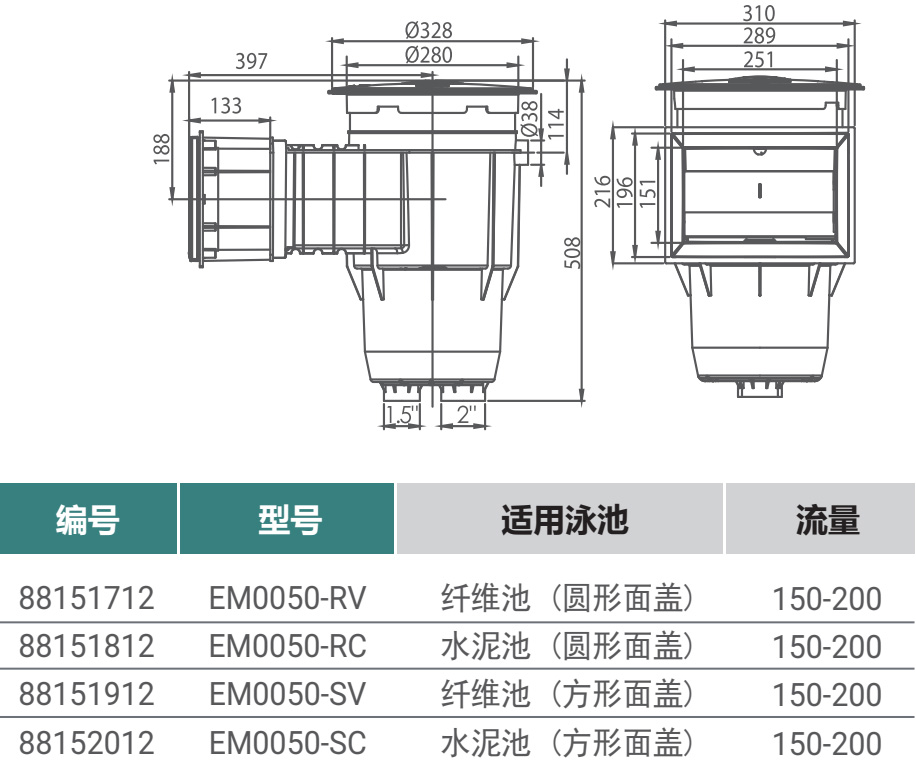

Product   NO: 88151712、88151812、88151912、88152012
系列号
Series: EM0050-RV、EM0050-RC、EM0050-SV、EM0050-SC

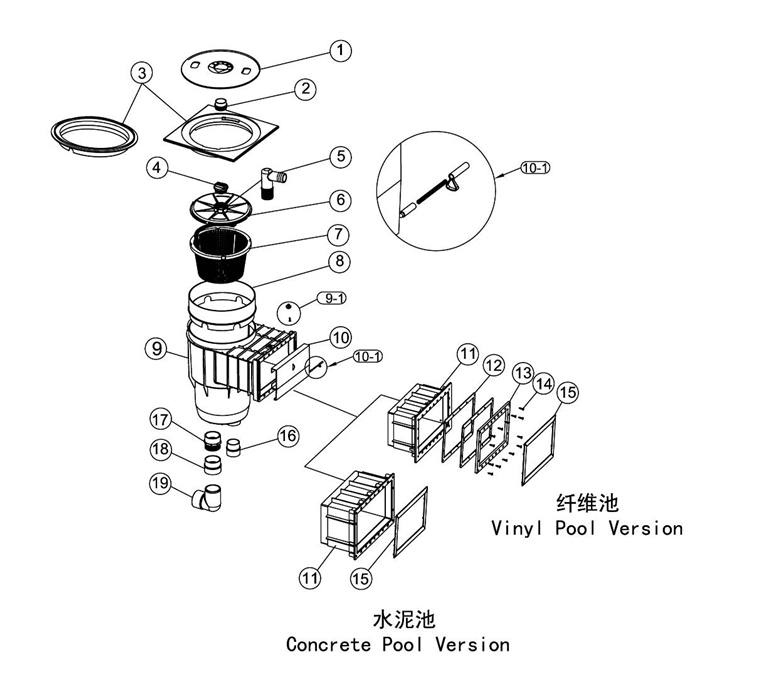

项目部件编号 中文 数量
Key  NO.Part NumberChinese QTY
11211034圆环面盖(EMAUX)1
1211037圆环面盖(空白)1
21050009圆盖牙套1
31211035圆形定位盖1
1211036方形定位盖1
410510231.5"塞头1
51050007弯形软管接头1
61051180内盖1
789150501过滤篮连手挽1
81050004加高环1
989150503A身1
9-189150504挡块与螺丝1
1089150502浮动阀门(含泡棉)1
10-189150505锁紧销扣连#316弹簧1
111050023大型撇渣器加长件(宽)1
1050032大型撇渣器加长件(窄)1
122020021胶垫2
131051184标准压紧盖1
143011300平头自攻螺丝14
151051185遮丑盖1
1611700091.5"公制转英制接头1
1711700072.0"带牙接头1
1811700082.0"公制转英制接头1
191170023弯形2.0"接头1
