便利的设计，先进的技术是各种泳池的热门搭配，意万仕创新的设计和先进的技术提供了优越的过滤性能和品莹剔透麦仕系列沙缸采用高密度聚乙塔一体成型，性能稳定可靠。
2. 活接头
3. 压力表
4. PVC & ABS材质过滤管
5. 配套管件
高密度聚乙烯
40psi / 2.8bar
50°c（122°F）
0.5-0.8mm
产品单张
产品型号

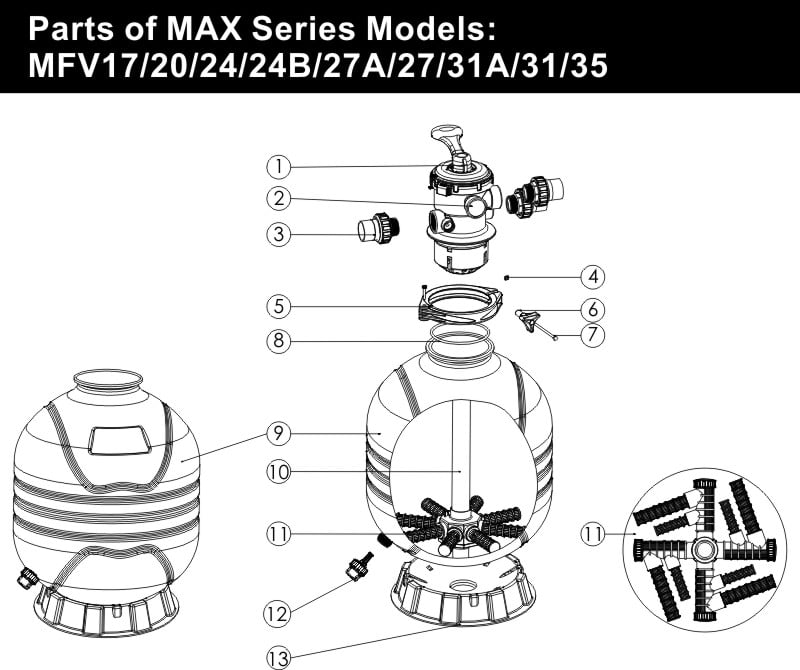

| Key No. | Part No. | Description | Piece(s) Required |
|---|---|---|---|
| 1 | 88281505B | 6 Way 1.5" Top Mount Valve (Valve Only) (Black) | 1 |
| 1 | 88281506B | 6 Way 2" Top Mount Valve (Valve Only) - Clamp Type (Black) | 1 |
| 2 | 06011029 | Maximum 40PSI Indication, Stainless Steel Casing | 1 |
| 2 | 01111048 | Connector for Pressure Gauge/Stopper | 1 |
| 3 | 89280102B | 1.5" union set (Black) with O-ring | 3 |
| 3 | 89280102W | 1.5" union set (White) with O-ring | 3 |
| 3 | 89280103B | 2" union set (Black) with O-ring | 3 |
| 3 | 89280103W | 2" union set (White) with O-ring | 3 |
| 4 | 03021035 | M6 Nut | 1 |
| 5 | 89012512 | Clamp Kit | 1 |
| 6 | 01111101 | Star-Shaped Nut | 1 |
| 7 | 112000017 | M6x125mm Screws | 1 |
| 8 | 02010007 | O-Ring | 1 |
| 9 | 89012501 | Filter Tank for MFV17 with base | 1 |
| 9 | 89012502 | Filter Tank for MFV20 with base | 1 |
| 9 | 89012503 | Filter Tank for MFV24/MFV24B with base | 1 |
| 9 | 89012504 | Filter Tank for MFV27/MFV27A with base | 1 |
| 9 | 89012505 | Filter Tank for MFV31/ MFV31A with base | 1 |
| 9 | 89012506 | Filter Tank for MFV35 wth base | 1 |
| 10 | 89012507 | Lateral Assembly with Center Pipe for MFV17 | 1 |
| 10 | 89012508 | Lateral Assembly with Center Pipe for MFV20 | 1 |
| 10 | 89012509 | Lateral Assembly with Center Pipe for MFV24 | 1 |
| 10 | E010116 | Lateral Assembly with Center Pipe for MFV24B | 1 |
| 10 | 89012510 | Lateral Assembly with Center Pipe for MFV27A | 1 |
| 10 | 89012513 | Lateral Assembly with Center Pipe for MFV27 | 1 |
| 10 | 89012511 | Lateral Assembly with Center Pipe for MFV31A | 1 |
| 10 | 89012514 | Lateral Assembly with Center Pipe for MFV31 | 1 |
| 10 | 89012515 | Lateral Assembly with Center Pipe for MFV35 | 1 |
| 11 | 01172007 | Laterals (115mm) | 1 |
| 11 | 01172008 | Laterals (126mm) | 1 |
| 11 | 01172010 | Laterals (185mm) | 1 |
| 12 | 89011601 | Water Drain Set | 1 |
| 13 | 01111059 | 16-18inch Filter Base | 1 |
| 13 | 01111062 | 21-28inch Filter Base | 1 |
| 13 | 01112037 | 31-35inch Filter Base | 1 |
